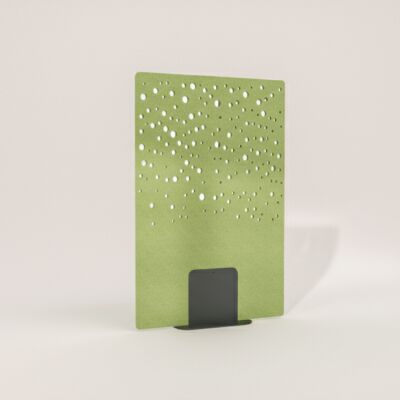

Boyd Acoustic Satori Divider Bubbles 1200x1800x24mm

Read our Acoustic Guide for more information on the benefits of acoustic solutions.

Reduce noise disturbance while adding elements of design to your workspace with the new Satori Divider. These acoustic screens help to divide up space, create privacy and absorb up to 40% of sound energy.  Each Satori Divider comes with a black stand to easily move the divider between different areas.

Available in 3 unique designs and 23 different colours to enhance your workspace.

Colour Chart:

White	Linen	Mist	Light Grey	Dark Silvery Grey
Sesame Grey	Dark Grey	Black	Navy Peony	Pageant Blue
Sky Blue	Turquoise	Forest Green	Apple Green	Leaf Green
Sage	Mustard	Yellow	Orange	Rust
Driftwood	Dusky Rose	Wine

* Due to colour differences between monitors/screens you are viewing on colours may vary. Email us to request a sample to see colours in person.

• Made from compressed polyester with no less than 70% recycled content
• Simply slot the acoustic panel into the Satori stand for easy installation
• Choose from 3 unique designs
• Available in 23 colours
• Manufactured in New Zealand

Installation

See Boyd installation instructions here.

Specifications

Boyd Acoustic Panels are semi-rigid, lightweight and available in 12mm or 24mm thickness. These panels are made from compressed polyester fibre with no less than 70% recycled content and checked at each stage of production to ensure quality control.

Boyd products are designed to manage noise reverberation by absorbing sound energy. With a large selection of wall, hanging and ceiling styles, we have an acoustic solution to suit your workspace.

Composition

100% polyester fibre with no less than 70% recycled content. 100% polyester fibre from polyethylene terephthalate
(PET).

Panel Dimensions

1220 x 2400mm or special size

Thickness

12mm

Weight

2300gsm

Warranty

10 years on

Acoustic Performance

NRC 0.40 when adhered directly to the wall. Absorbs up to 40% of noise that comes into contact with the surface. NRC 0.80 with a 50mm air gap.

Applications

Acoustic wall, hanging and ceiling, treatments for commercial, retail and education spaces. Cut to any shape, pattern or size to suit your workspace.

Print logos or designs on the panels due to semi-rigid structure.

Acoustic surface provides option for pinboard use.

Acoustic space divider offers privacy and sound absorption.

Environment

Low VOC

Made from minimum 70% recycled content.

Material is non-irritant / non-allergenic / non chemical binders.

Installation

See Boyd installation instructions here.

Fire Retardant Testing

Boyd Acoustic Panels (12mm) have been tested according to AS ISO 9705-2003 (R2016).

Full scale room test for surface products.

Assigned a Group 1 classification.

SMOGRArc = 0.086m2/s2 x 1000.

As per AS 5637.1:2015 clause 4.2.

Finish/Surface

Boyd Acoustic Panels are a solid colour with no pattern repeat. Panels do have a slight directional grain.

Colour can vary from samples and by batch due to the nature of the production process.

Colour Fastness

Boyd Acoustic Panels are suitable for indoor use only. Colour and light-fastness are dependent on use and exposure. Avoid strong
ultraviolet radiation.

Colours

23 colours available ex-stock, with a further 72 colours available with an eight-week lead time.
