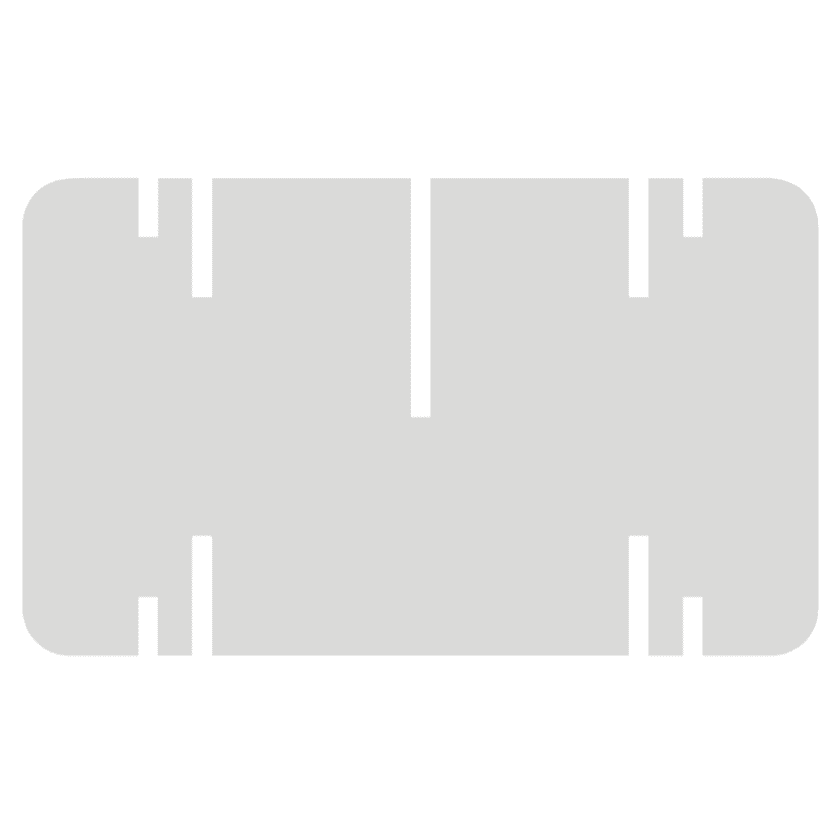

Boyd Acoustic Boundry Divider 1 Piece 300x500x12mm
Code: 158615
$31.48 inc GSTdoneShipped from Supplier
Read our Acoustic Guide for more information on the benefits of acoustic solutions.

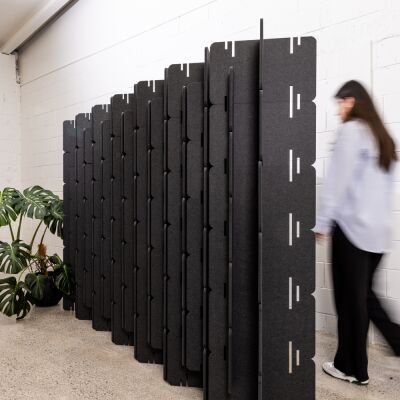

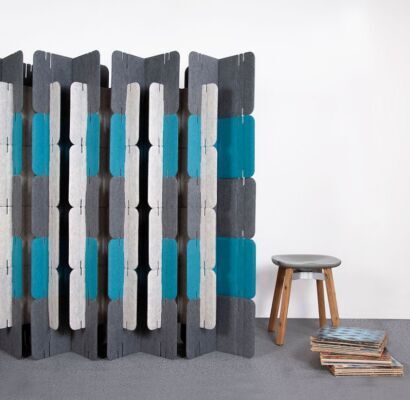

Create screens, walls or collaboration areas on demand with the new Boundary Divider. Available in various heights and widths, this acoustic solution is a great way to divide and transform your workspace whilst minimising noise. Create your unique design with our range of 23 colours.
The Boundary Divider can be assembled in under 15 minutes and is easily moved around the work environment.
Colour Chart:
 |
 |
 |
 |
 |
|
White |
Linen |
Mist |
Light Grey |
Dark Silvery Grey |
 |
 |
 |
 |
 |
|
Sesame Grey |
Dark Grey |
Black |
Navy Peony |
Pageant Blue |
 |
 |
 |
 |
 |
|
Sky Blue |
Turquoise |
Forest Green |
Apple Green |
Leaf Green |
 |
 |
 |
 |
 |
|
Sage |
Mustard |
Yellow |
Orange |
Rust |
 |
 |
 |
||
|
Driftwood |
Dusky Rose |
Wine |
* Due to colour differences between monitors/screens you are viewing on colours may vary. Email us to request a sample to see colours in person.
- Made from compressed polyester with no less than 70% recycled content

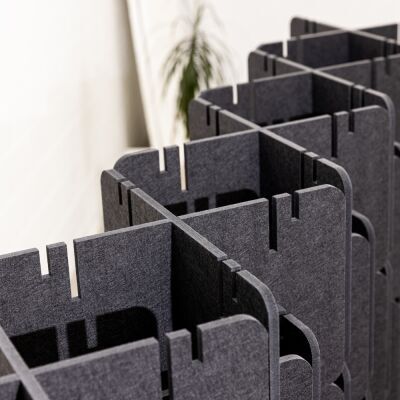

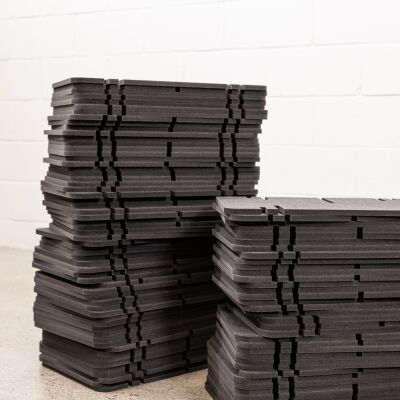

- Simply slot the pieces of acoustic material together to form the Boundary Divider
- Choose from various heights and widths. Talk to our team about the number of pieces you require to build your Boundary Divider.
- Available in 23 colours. Talk to our team about adding a second colour to your Boundary Divider.
- Manufactured in New Zealand
See Boyd installation instructions here.
To help you divide and transform your workspace, we’ve developed a process to help you place an order and also assemble your product.
 |
To order
1. Choose your height – either 1500 or 1800mm.
2. Choose your width from the options in the table below to determine the number of pieces required.
| Height mm | ||
| Width mm | 1500 | 1800 |
| 1150 | 46 pieces | 56 pieces |
| 1540 | 64 pieces | 78 pieces |
| 1630 | 82 pieces | 100 pieces |
| 2320 | 100 pieces | 122 pieces |
| 2710 | 118 pieces | 144 pieces |
| 3100 | 136 pieces | 166 pieces |
| 3490 | 154 pieces | 188 pieces |
| 3880 | 172 pieces | 210 pieces |
3. If you want to customise your Boundary Divider to be larger than the options above, please follow the guidelines below. For additional height add increments of 300mm (rows) and for additional width add increments of 390mm (columns).
| Height mm | |||
| Width mm | 1500 | 1800 | Pieces to add 300mm in height |
| 1150 | 46 pieces | 56 pieces | 10 pieces |
| 1540 | 64 pieces | 78 pieces | 14 pieces |
| 1630 | 82 pieces | 100 pieces | 18 pieces |
| 2320 | 100 pieces | 122 pieces | 22 pieces |
| 2710 | 118 pieces | 144 pieces | 26 pieces |
| 3100 | 136 pieces | 166 pieces | 30 pieces |
| 3490 | 154 pieces | 188 pieces | 34 pieces |
| 3880 | 172 pieces | 210 pieces | 38 pieces |
| To add 390mm in width add 18 pieces | To add 390mm in width add 22 pieces | ||
4. Choose your colour. If you would like a second colour please choose from a vertical or horizontal option (as shown below).
Once you have chosen your colour(s) please let us know when you place the order.
 |
 |

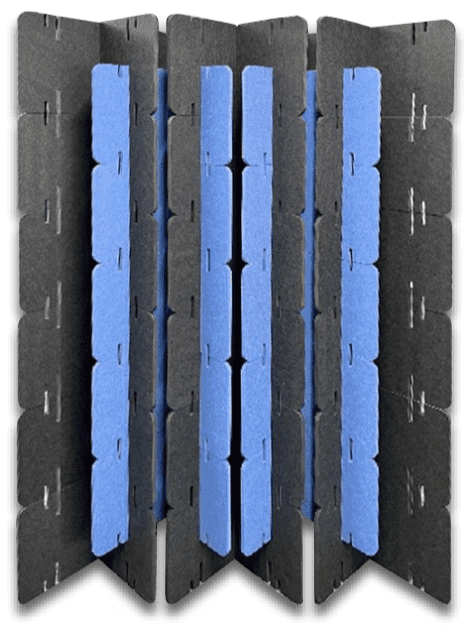

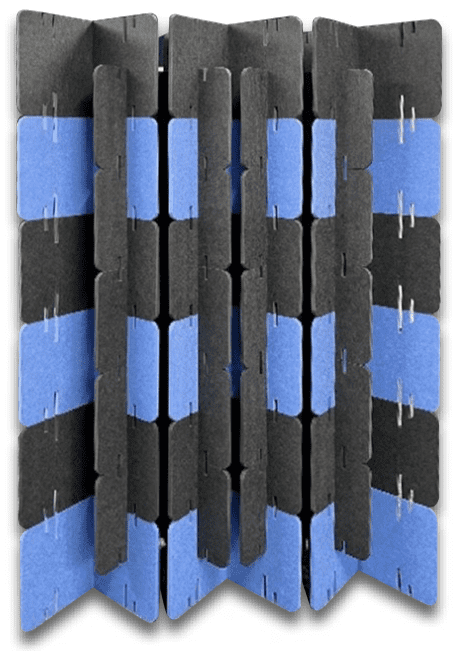

| Second colour vertical | Second colour horizontal |
any questions, just call or email us, we are happy to help.
Specifications
Boyd Acoustic Panels are semi-rigid, lightweight and available in 12mm or 24mm thickness. These panels are made from compressed polyester fibre with no less than 70% recycled content and checked at each stage of production to ensure quality control.
Boyd products are designed to manage noise reverberation by absorbing sound energy. With a large selection of wall, hanging and ceiling styles, we have an acoustic solution to suit your workspace.
Composition
100% polyester fibre with no less than 70% recycled content. 100% polyester fibre from polyethylene terephthalate
(PET).
Panel Dimensions
1220 x 2400mm or special size
Thickness
12mm
Weight
2300gsm
Warranty
10 years on
Acoustic Performance
NRC 0.40 when adhered directly to the wall. Absorbs up to 40% of noise that comes into contact with the surface. NRC 0.80 with a 50mm air gap.
Applications
Acoustic wall, hanging and ceiling, treatments for commercial, retail and education spaces. Cut to any shape, pattern or size to suit your workspace.
Print logos or designs on the panels due to semi-rigid structure.
Acoustic surface provides option for pinboard use.
Acoustic space divider offers privacy and sound absorption.
Environment
Low VOC
Made from minimum 70% recycled content.
Material is non-irritant / non-allergenic / non chemical binders.
Installation
See Boyd installation instructions here.
Fire Retardant Testing
Boyd Acoustic Panels (12mm) have been tested according to AS ISO 9705-2003 (R2016).
Full scale room test for surface products.
Assigned a Group 1 classification.
SMOGRArc = 0.086m2/s2 x 1000.
As per AS 5637.1:2015 clause 4.2.
Finish/Surface
Boyd Acoustic Panels are a solid colour with no pattern repeat. Panels do have a slight directional grain.
Colour can vary from samples and by batch due to the nature of the production process.
Colour Fastness
Boyd Acoustic Panels are suitable for indoor use only. Colour and light-fastness are dependent on use and exposure. Avoid strong
ultraviolet radiation.
Colours
23 colours available ex-stock, with a further 72 colours available with an eight-week lead time.
