Boyd Acoustic Ceiling Floating Panel Square 1200x1200x24mm Each

Read our Acoustic Guide for more information on the benefits of acoustic solutions.

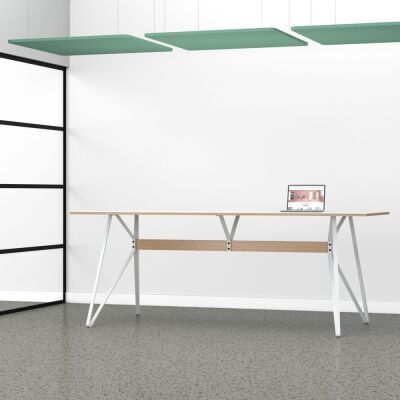

Acoustic panels suspended from the ceiling to improve acoustic performance and add a touch of style to a workspace. These floating panels are 24mm thick and come with 2m of cable for easy installation.

Add more style to your workplace and choose from our 23 different colour options.

Colour Chart:

White	Linen	Mist	Light Grey	Dark Silvery Grey
Sesame Grey	Dark Grey	Black	Navy Peony	Pageant Blue
Sky Blue	Turquoise	Forest Green	Apple Green	Leaf Green
Sage	Mustard	Yellow	Orange	Rust
Driftwood	Dusky Rose	Wine

* Due to colour differences between monitors/screens you are viewing on colours may vary. Email us to request a sample to see colours in person.

• A range of colours to suit your space
• Available in Square or Round shape
• Sound absorption to help minimise distractions
• Manufactured in New Zealand

Specifications

Boyd Acoustic Panels are semi-rigid, lightweight and available in 12mm or 24mm thickness. These panels are made from compressed polyester fibre with no less than 70% recycled content and checked at each stage of production to ensure quality control.

Boyd products are designed to manage noise reverberation by absorbing sound energy. With a large selection of wall, hanging and ceiling styles, we have an acoustic solution to suit your workspace.

Composition

100% polyester fibre with no less than 70% recycled content. 100% polyester fibre from polyethylene terephthalate
(PET).

Panel Dimensions

1220 x 2400mm or special size

Thickness

12mm

Weight

2300gsm

Warranty

10 years on

Acoustic Performance

NRC 0.40 when adhered directly to the wall. Absorbs up to 40% of noise that comes into contact with the surface. NRC 0.80 with a 50mm air gap.

Applications

Acoustic wall, hanging and ceiling, treatments for commercial, retail and education spaces. Cut to any shape, pattern or size to suit your workspace.

Print logos or designs on the panels due to semi-rigid structure.

Acoustic surface provides option for pinboard use.

Acoustic space divider offers privacy and sound absorption.

Environment

Low VOC

Made from minimum 70% recycled content.

Material is non-irritant / non-allergenic / non chemical binders.

Installation

See Boyd installation instructions here.

Fire Retardant Testing

Boyd Acoustic Panels (12mm) have been tested according to AS ISO 9705-2003 (R2016).

Full scale room test for surface products.

Assigned a Group 1 classification.

SMOGRArc = 0.086m2/s2 x 1000.

As per AS 5637.1:2015 clause 4.2.

Finish/Surface

Boyd Acoustic Panels are a solid colour with no pattern repeat. Panels do have a slight directional grain.

Colour can vary from samples and by batch due to the nature of the production process.

Colour Fastness

Boyd Acoustic Panels are suitable for indoor use only. Colour and light-fastness are dependent on use and exposure. Avoid strong
ultraviolet radiation.

Colours

23 colours available ex-stock, with a further 72 colours available with an eight-week lead time.
