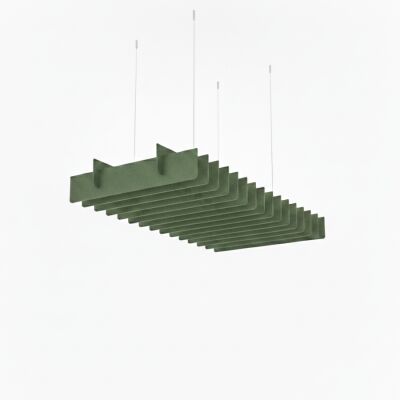

Boyd Acoustic Ceiling Baffle Grid 1200x2400x300mm
Code: 158623
$1,600.48 inc GSTdoneShipped from Supplier
Read our Acoustic Guide for more information on the benefits of acoustic solutions.
A range of acoustic baffles that are suspended from the ceiling.
Add a design element to any space and reduce and control echo. Ideal for meeting rooms or open plan workspaces with hard surfaces.
Colour Chart:
 |
 |
 |
 |
 |
|
White |
Linen |
Mist |
Light Grey |
Dark Silvery Grey |
 |
 |
 |
 |
 |
|
Sesame Grey |
Dark Grey |
Black |
Navy Peony |
Pageant Blue |
 |
 |
 |
 |
 |
|
Sky Blue |
Turquoise |
Forest Green |
Apple Green |
Leaf Green |
 |
 |
 |
 |
 |
|
Sage |
Mustard |
Yellow |
Orange |
Rust |
 |
 |
 |
||
|
Driftwood |
Dusky Rose |
Wine |
* Due to colour differences between monitors/screens you are viewing on colours may vary. Email us to request a sample to see colours in person.
- Reduce noise disturbance and add style to your workspace with three designs – Halo, Fly and Grid.
- Lightweight
- Easy to hang from the ceiling
- Available in 23 colours to suit your workspace
- Manufactured in New Zealand
Specifications
Boyd Acoustic Panels are semi-rigid, lightweight and available in 12mm or 24mm thickness. These panels are made from compressed polyester fibre with no less than 70% recycled content and checked at each stage of production to ensure quality control.
Boyd products are designed to manage noise reverberation by absorbing sound energy. With a large selection of wall, hanging and ceiling styles, we have an acoustic solution to suit your workspace.
Composition
100% polyester fibre with no less than 70% recycled content. 100% polyester fibre from polyethylene terephthalate
(PET).
Panel Dimensions
1220 x 2400mm or special size
Thickness
12mm
Weight
2300gsm
Warranty
10 years on
Acoustic Performance
NRC 0.40 when adhered directly to the wall. Absorbs up to 40% of noise that comes into contact with the surface. NRC 0.80 with a 50mm air gap.
Applications
Acoustic wall, hanging and ceiling, treatments for commercial, retail and education spaces. Cut to any shape, pattern or size to suit your workspace.
Print logos or designs on the panels due to semi-rigid structure.
Acoustic surface provides option for pinboard use.
Acoustic space divider offers privacy and sound absorption.
Environment
Low VOC
Made from minimum 70% recycled content.
Material is non-irritant / non-allergenic / non chemical binders.
Installation
See Boyd installation instructions here.
Fire Retardant Testing
Boyd Acoustic Panels (12mm) have been tested according to AS ISO 9705-2003 (R2016).
Full scale room test for surface products.
Assigned a Group 1 classification.
SMOGRArc = 0.086m2/s2 x 1000.
As per AS 5637.1:2015 clause 4.2.
Finish/Surface
Boyd Acoustic Panels are a solid colour with no pattern repeat. Panels do have a slight directional grain.
Colour can vary from samples and by batch due to the nature of the production process.
Colour Fastness
Boyd Acoustic Panels are suitable for indoor use only. Colour and light-fastness are dependent on use and exposure. Avoid strong
ultraviolet radiation.
Colours
23 colours available ex-stock, with a further 72 colours available with an eight-week lead time.
